Why Your AV Rack Design Matters More Than You Think

The rack is the invisible backbone of your smart home. When it is designed well, everything feels effortless. When it is not, you get the familiar complaints we hear in Vancouver and West Vancouver: “Our rack is a mess,” “things keep overheating,” and “no one can service it without unplugging half the house.”

This post breaks down what a properly designed AV rack actually does, and why it impacts day-to-day performance, long-term reliability, and how quickly problems can be solved. If you are planning a new build or dealing with an existing system that feels fragile, this is the foundation to get right. The goal is to turn that “invisible” infrastructure into something you understand, value, and can rely on for the next decade.

What an AV Rack Really Is (And Why It Matters)

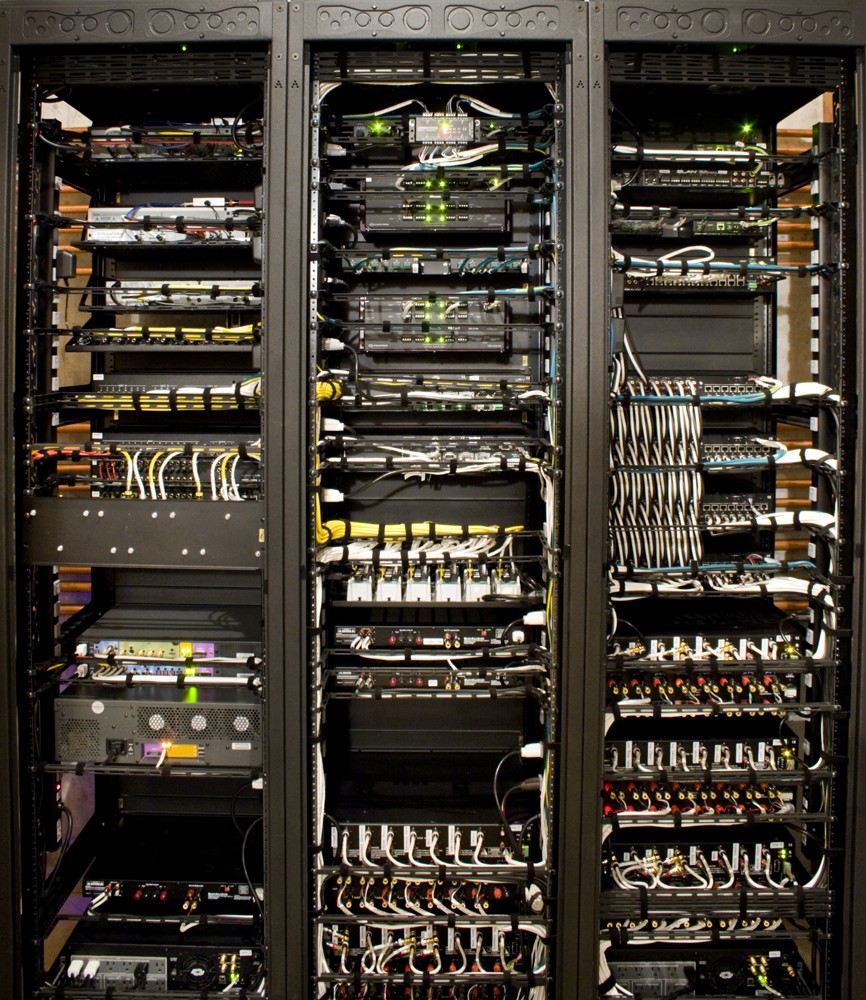

An AV rack is not just a place to stack equipment. It is where your network, audio video components, control hardware, and power protection come together in one organised, serviceable system. Every Graytek smart home system relies on a properly designed, engineered, and installed rack as the physical core of the system.

In a well-built home, the technology should support the architecture and interiors, not fight them. That starts with keeping the infrastructure clean, quiet, and maintainable through structured wiring, professional-grade racking, and thoughtful equipment placement.

SEE ALSO: How Graytek Designs and Delivers Each Project

1) Heat and Airflow: The Fastest Way to Shorten Equipment Life

Heat is one of the most common reasons systems become unreliable over time. Many devices are designed to run 24/7, but only if they can breathe and only if ventilation has been planned and verified, not guessed.

Common problems in “problem racks” include:

• Gear packed too tightly with no spacing
• Vents blocked by cables or stacked components
• Fans moving air in the wrong direction, or not moving enough air at all
• Closets with no ventilation, especially in tight utility spaces

Good rack design includes:

• A plan for airflow that matches the equipment, the room, and the door style
• Proper spacing and venting so heat does not get trapped
• A layout that anticipates future additions so the rack does not become overfilled

The goal is simple: stable temperatures, stable performance, and fewer mystery failures.

2) Noise: A Comfort Issue That Becomes a Lifestyle Issue

Even if everything works, rack noise can ruin the experience. Fan noise, buzzing power supplies, and vibrating doors are all common when racks are placed without a noise strategy.

Good rack design considers:

• Where the rack lives in the home, especially in higher-end Vancouver and West Vancouver projects where mechanical rooms and closets are carefully planned
• How to isolate or reduce noise so it does not travel into living areas
• How to keep equipment cool without turning the rack room into a wind tunnel

Quiet systems are not luck. They are designed.

3) Cable Management: The Difference Between Working Today and Serviceable for Years

Messy cabling is not just cosmetic. It is what turns a simple service visit into hours of tracing, unplugging, and risk. Without a proper rack, you end up with tangled wiring, mystery connections, and no space for future gear.

A serviceable rack should include:

• Structured cable paths and clean dressing so nothing is strained or kinked
• A proper patching strategy for network and AV connections
• Clear labels that match documentation, so any qualified technician can work efficiently
• Service loops where appropriate, so devices can be removed without cutting or yanking cables

If you have ever been told “we cannot touch it because we might break something,” that is almost always a cable management and documentation problem.

SEE ALSO: Service, Support, and Repair Options with Graytek

4) Power, Protection, and Uptime: Stability Starts Here

Power is often treated as an afterthought, but it is foundational. Brownouts, surges, and brief outages can cause lockups, reboots, and even equipment damage. Graytek systems are built on a professional-grade power and grounding foundation with dedicated circuits, rack-mounted UPS, surge protection, and remote-managed power.

A professional approach typically includes:

• Appropriately sized power protection and battery backup for critical systems
• Clean circuit planning and clear identification of what is powered where
• A layout that keeps power, network, and low-voltage wiring organised and separated where it should be

For many homeowners, this is the difference between “everything is fine most days” and “it just works, all the time.”

5) Network Layout: Where Your Connected Home Succeeds or Struggles

In modern homes, the network is the core utility. If the rack network layout is unclear, your experience will be inconsistent across streaming, security, remote access, and day-to-day connectivity. The rack is where the professional-grade network hardware, segmentation, and cloud management all come together.

The rack should make it easy to understand:

• What feeds what
• Where the internet service enters the home
• How the home network is distributed and segmented, if required
• How troubleshooting is done without disrupting the whole system

This is also where good structured wiring and infrastructure pay off long term.

SEE ALSO: Wi-Fi and Networking for Modern Smart Homes

6) Documentation and Execution Standards: The Part You Rarely See, but Always Feel

A reliable rack is not just the hardware. It is the process behind it. Graytek designs every rack in-house, pre-builds and tests racks before they ever ship to site, and fully cable-manages, labels, and documents each rack with load plans and install diagrams.

Graytek clients receive real documentation, not back-of-napkin diagrams, including system and wiring drawings, rack layouts and elevations, network schemes, product schedules, and as-built documentation for future service and upgrades. If you are a builder, this reduces callbacks and surprises. If you are a homeowner, it means faster service, fewer disruptions, and a system that can grow with you.

New Build vs Upgrade: What to Do If Your Current Rack Is Already a Problem

New build projects have the advantage of planning the rack location, ventilation, and structured wiring from the start. Upgrades often require a reset to bring order back to the backbone, especially if existing gear has been scattered in closets, millwork, or shallow enclosures.

If you already have a messy or overheating rack, the first step is usually a consult to review rack location and ventilation constraints, cable condition, labelling and patching, power strategy and protection, network design and layout, and practical options to improve reliability without ripping everything out. When the rack is fixed properly, the whole home feels more dependable.

Make the Invisible Backbone Something You Can Trust

If your system runs hot, sounds loud, or feels impossible to service, it is time to address the foundation. Graytek supports homeowners and builders across Vancouver, West Vancouver, and the wider Metro Vancouver region with design-first infrastructure that is built to last.

To request a rack and infrastructure consult, contact the Graytek team through the main contact page on the website. From there, the team can review your existing rack, discuss new build plans, and recommend a path to a cleaner, cooler, and more reliable smart home backbone.
